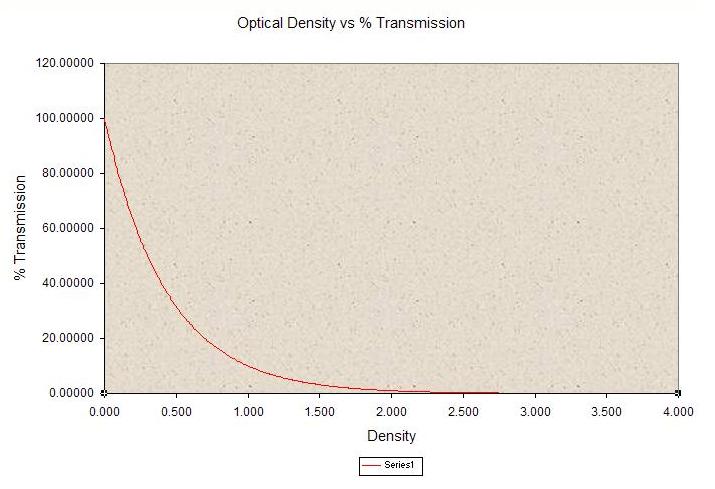

Optical Density vs Percent Transmission

Density	Perc. Trans. of Refl	Density	Perc. Trans. of Refl	Density	Perc. Trans. of Refl	Density	Perc. Trans. of Refl
0.000	100.00000	1.000	10.00000	2.000	1.00000	3.000	0.10000
0.010	97.72000	1.010	9.77200	2.010	0.97720	3.010	0.09770
0.020	95.50000	1.020	9.55000	2.020	0.95500	3.020	0.09550
0.030	93.33000	1.030	9.33300	2.030	0.93330	3.030	0.09330
0.040	91.20000	1.040	9.12000	2.040	0.91200	3.040	0.09120
0.050	89.13000	1.050	8.91300	2.050	0.89130	3.050	0.08910
0.060	87.10000	1.060	8.71000	2.060	0.87100	3.060	0.08710
0.070	85.11000	1.070	8.51100	2.070	0.85110	3.070	0.08510
0.080	83.18000	1.080	8.31800	2.080	0.83180	3.080	0.08320
0.090	81.28000	1.090	8.12800	2.090	0.81280	3.090	0.08130
0.100	79.43000	1.100	7.94300	2.100	0.79430	3.100	0.07940
0.110	77.62000	1.110	7.76200	2.110	0.77620	3.110	0.07760
0.120	75.86000	1.120	7.58600	2.120	0.75860	3.120	0.07590
0.130	74.13000	1.130	7.41300	2.130	0.74130	3.130	0.07410
0.140	72.44000	1.140	7.24400	2.140	0.72440	3.140	0.07240
0.150	70.79000	1.150	7.07900	2.150	0.70790	3.150	0.07080
0.160	69.18000	1.160	6.91800	2.160	0.69180	3.160	0.06920
0.170	67.61000	1.170	6.76100	2.170	0.67610	3.170	0.06760
0.180	66.07000	1.180	6.60700	2.180	0.66070	3.180	0.06610
0.190	64.57000	1.190	6.45700	2.190	0.64570	3.190	0.06460
0.200	63.10000	1.200	6.31000	2.200	0.63100	3.200	0.06310
0.210	61.66000	1.210	6.16600	2.210	0.61660	3.210	0.06170
0.220	60.26000	1.220	6.02600	2.220	0.60260	3.220	0.06030
0.230	58.88000	1.230	5.88800	2.230	0.58860	3.230	0.05880
0.240	57.54000	1.240	5.75400	2.240	0.57540	3.240	0.05750
0.250	56.23000	1.250	5.62300	2.250	0.56230	3.250	0.05620
0.260	54.95000	1.260	5.49500	2.260	0.54950	3.260	0.05500
0.270	53.70000	1.270	5.37000	2.270	0.53700	3.270	0.05370
0.280	52.48000	1.280	5.24800	2.280	0.52460	3.280	0.05290
0.290	51.29000	1.290	5.12900	2.290	0.51290	3.290	0.05130
0.300	50.12000	1.300	5.01200	2.300	0.50120	3.300	0.05010
0.310	48.98000	1.310	4.89800	2.310	0.48980	3.310	0.04890
0.320	47.86000	1.320	4.78600	2.320	0.47860	3.320	0.04780
0.330	46.77000	1.330	4.67700	2.330	0.46770	3.330	0.04680
0.340	45.71000	1.340	4.57100	2.340	0.45710	3.340	0.04570
0.350	44.67000	1.350	4.46700	2.350	0.44670	3.350	0.04460
0.360	43.65000	1.360	4.36500	2.360	0.43650	3.360	0.04360
0.370	42.66000	1.370	4.26600	2.370	0.42660	3.370	0.04266
0.380	41.69000	1.380	4.16900	2.380	0.41690	3.380	0.04170
0.390	40.74000	1.390	4.07400	2.390	0.40740	3.390	0.04070
0.400	39.81000	1.400	3.98100	2.400	0.39810	3.400	0.03980
0.410	38.90000	1.410	3.89000	2.410	0.38900	3.410	0.03890
0.420	38.02000	1.420	3.80200	2.420	0.38020	3.420	0.03800
0.430	37.15000	1.430	3.71500	2.430	0.37150	3.430	0.03710
0.440	36.31000	1.440	3.63100	2.440	0.36310	3.440	0.03630
0.450	35.48000	1.450	3.54800	2.450	0.35480	3.450	0.03550
0.460	34.67000	1.460	3.46700	2.460	0.34670	3.460	0.03470
0.470	33.88000	1.470	3.38800	2.470	0.33880	3.470	0.03390
0.480	33.11000	1.480	3.31100	2.480	0.33110	3.480	0.03310
0.490	32.36000	1.490	3.23600	2.490	0.32360	3.490	0.03240
0.500	31.62000	1.500	3.16200	2.500	0.31620	3.500	0.03160
0.510	30.90000	1.510	3.09000	2.510	0.30900	3.510	0.03090
0.520	30.20000	1.520	3.02000	2.520	0.30200	3.520	0.03020
0.530	29.51000	1.530	2.95100	2.530	0.29510	3.530	0.02950
0.540	28.84000	1.540	2.88400	2.540	0.28840	3.540	0.02880
0.550	28.18000	1.550	2.81800	2.550	0.28180	3.550	0.02890
0.560	27.54000	1.560	2.75400	2.560	0.27540	3.560	0.02750
0.570	26.92000	1.570	2.69200	2.570	0.26920	3.570	0.02690
0.580	26.30000	1.580	2.63000	2.580	0.26300	3.580	0.02630
0.590	25.70000	1.590	2.57000	2.590	0.25700	3.590	0.02570
0.600	25.12000	1.600	2.51200	2.600	0.25120	3.600	0.02510
0.610	24.55000	1.610	2.45500	2.610	0.24550	3.610	0.02450
0.620	23.99000	1.620	2.39900	2.620	0.23990	3.620	0.02390
0.630	23.44000	1.630	2.34400	2.630	0.23440	3.630	0.02340
0.640	22.91000	1.640	2.29100	2.640	0.22910	3.640	0.02290
0.650	22.39000	1.650	2.23900	2.650	0.22390	3.650	0.02230
0.660	21.88000	1.660	2.18800	2.660	0.21880	3.660	0.02180
0.670	21.38000	1.670	2.13800	2.670	0.21380	3.670	0.02140
0.680	20.89000	1.680	2.08900	2.680	0.20890	3.680	0.02180
0.690	20.42000	1.690	2.04200	2.690	0.20420	3.690	0.02040
0.700	19.95000	1.700	1.99500	2.700	0.19950	3.700	0.01990
0.710	19.50000	1.710	1.95000	2.710	0.19500	3.710	0.01950
0.720	19.05000	1.720	1.90500	2.720	0.19050	3.720	0.01900
0.730	18.62000	1.730	1.86200	2.730	0.18620	3.730	0.01860
0.740	18.20000	1.740	1.82000	2.740	0.18200	3.740	0.01820
0.750	17.78000	1.750	1.77800	2.750	0.17780	3.750	0.01780
0.760	17.38000	1.760	1.73800	2.760	0.17380	3.760	0.01740
0.770	16.98000	1.770	1.69800	2.770	0.16980	3.770	0.01690
0.780	16.60000	1.780	1.66000	2.780	0.16600	3.780	0.01660
0.790	16.22000	1.790	1.62200	2.790	0.16220	3.790	0.01620
0.800	15.85000	1.800	1.58500	2.800	0.15850	3.800	0.01580
0.810	15.49000	1.810	1.54900	2.810	0.15490	3.810	0.01550
0.820	15.14000	1.820	1.51400	2.820	0.15140	3.820	0.01520
0.830	14.79000	1.830	1.47900	2.830	0.14790	3.830	0.01430
0.840	14.45000	1.840	1.44500	2.840	0.14450	3.840	0.01450
0.850	14.13000	1.850	1.41300	2.850	0.14130	3.850	0.01410
0.860	13.80000	1.860	1.38000	2.860	0.13800	3.860	0.01380
0.870	13.49000	1.870	1.34900	2.870	0.13490	3.870	0.01350
0.880	13.18000	1.880	1.31800	2.880	0.13180	3.880	0.01320
0.890	12.88000	1.890	1.28800	2.890	0.12880	3.890	0.01290
0.900	12.59000	1.900	1.25900	2.900	0.12590	3.900	0.01260
0.910	12.30000	1.910	1.23000	2.910	0.12300	3.910	0.01230
0.920	12.02000	1.920	1.20200	2.920	0.12020	3.920	0.01200
0.930	11.75000	1.930	1.17500	2.930	0.11750	3.930	0.01170
0.940	11.48000	1.940	1.14800	2.940	0.11480	3.940	0.01140
0.950	11.22000	1.950	1.12200	2.950	0.11220	3.950	0.01120
0.960	10.96000	1.960	1.09600	2.960	0.10960	3.960	0.01090
0.970	10.72000	1.970	1.07200	2.970	0.10720	3.970	0.01070
0.980	10.47000	1.980	1.04700	2.980	0.10470	3.980	0.01050
0.990	10.23000	1.990	1.02300	2.990	0.10230	3.990	0.01020
4.000	0.01000
